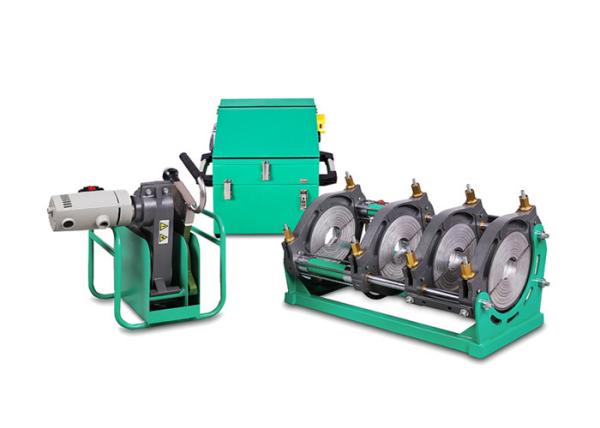

90mm 355mm Fusion Welding Machine For Hdpe Pipe

Name: 90mm 355mm Fusion Welding Machine For Hdpe Pipe
Brand: MM-TECH
Price: 8 USD

Brand Name : MM-TECH

Model Number : SWT-V355/90A

Certification : CE

Place of Origin : HEBEI, CHINA

MOQ : 1

Price : USD8,800/set

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 4000/set per month

Delivery Time : Within 5 days

Packaging Details : 3 Plywood Cases

Voltage : 230V

Frequency : 50/60Hz

Type : Fully Automatic

Rated Power : 5.25KW

Welding Range : 90 - 355mm

Usage : Butt Welding

Quality Guarantee : 24 months

Brand : MM-TECH

Model : SWT-V355/90A

Weldable Material : HDPE PP PVDF and other thermoplastic materials

Color : Green

Application : Pipe Systems

Contact Now

ISO21307-2017 CNC 90 - 355mm HDPE Butt Fusion Welding Machine

Butt Fusion Welding Machine Introduction

The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings. Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.
The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm. Fully encased control box makes the protection level up to IP 54.
Various welding standards (DVS, ISO, WIS, etc.) could be pre-installed by different languages upon your request. All welding reports could be saved immediately to internal memory with a capacity of 2000 reports after welding accomplished, or print the report. Meanwhile, it is available for downloading through the USB interface.

Butt Fusion Welding Machine Technical Sheet

Model	SWT-V355/90A
Welding Range O.D.(mm)	90 - 355
Reducer Inserts	90,110,125,140,160,180,200,225,250,280,315
Power Supply	230V 50/60Hz
Rated Power(kW)	5.25
Piston Area(cm²)	20.02
Overall N.W./G.W.(kg)	208kg/256kg

Butt Fusion Welding Machine Application

Factory Overview

90mm 355mm Fusion Welding Machine For Hdpe Pipe

Quality Guarantee

24 months-- If any parts broken or doesn't work under normal operating, we provide them for free.
